To ensure crystal-clear, high-penetration communication in airport ground handling, tower control, and emergency aviation operations, a professional aviation band handheld radio must deliver a minimum of 6W PEP (Peak Envelope Power), support 8.33kHz/25kHz adaptive channel spacing, and utilize a strict 6K00A3E AM modulation scheme.

Why Do Aviation Radios Use AM Modulation Instead of FM?

• Definition of 6K00A3E Emission: The International Civil Aviation Organization (ICAO) mandates that aviation voice communication must utilize Amplitude Modulation (AM), designated under ITU emission code 6K00A3E.
• Technical Boundary Conditions: Unlike FM (Frequency Modulation), AM modulation does not exhibit the "capture effect." When two FM signals broadcast simultaneously, the weaker signal is completely blocked. In an AM scheme, weak signals layer over stronger ones, ensuring that distant emergency distress calls are never entirely overridden by a nearby strong transmission.

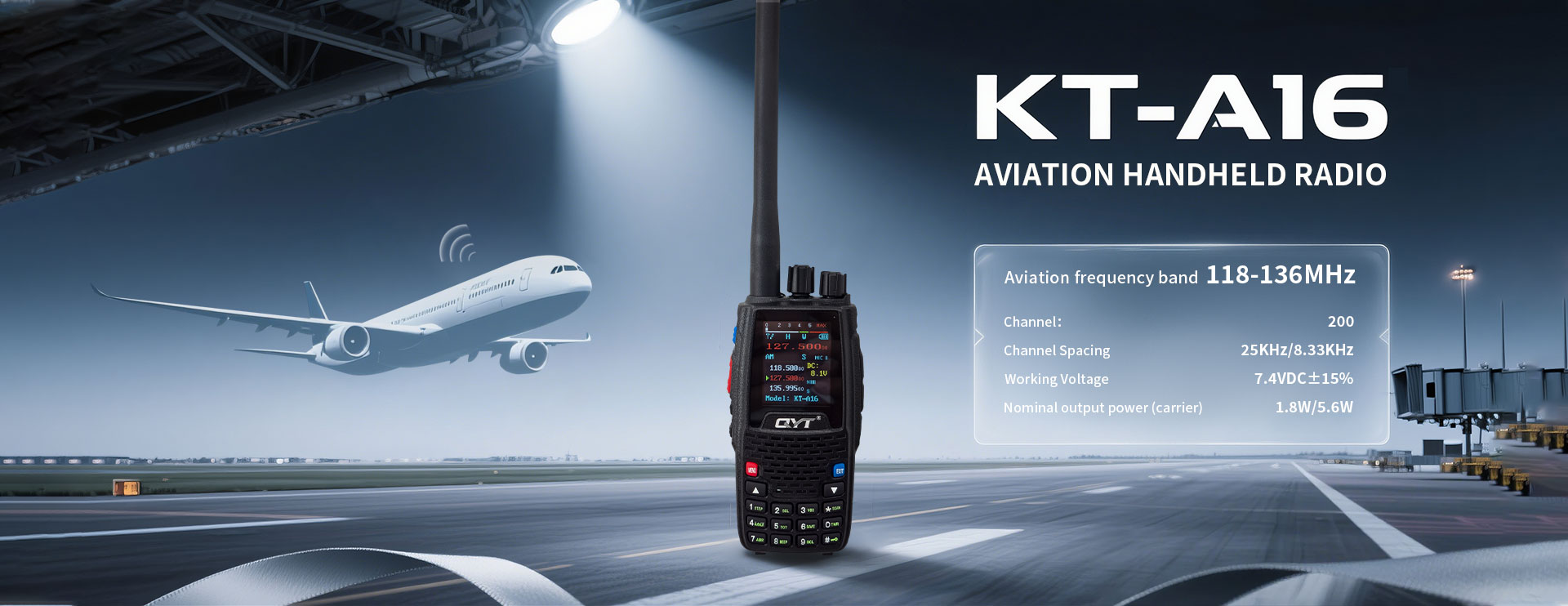

Technical Highlights of the QYT KT-A16 Aviation Transceiver

Engineered for civil aviation ground crews and aviation enthusiasts, the QYT KT-A16 Aviation Band Handheld Radio Sets an industry benchmark in RF performance; for vehicle-mounted long-distance aviation communication needs, view our QYT KT-A17 Mobile Radio for high-power fixed station solutions:

• 6W PEP High Power Output: Operating within the aviation transmit frequency range of 118.000 ~ 136.99166 MHz, it delivers 6.0 W Peak Envelope Power (PEP) for long-distance transmission, with an optional low transmit power of 1.8 W for short-range use. This significantly exceeds the 4W industry average, maximizing air-to-ground communication distance.

• 8.33kHz & 25kHz Dual Channel Spacing Technology:Fully compliant with modern international aviation standards, it supports both 8.33 kHz narrow and 25 kHz wide channel spacing to eliminate adjacent-channel interference in crowded airspace, and supports standard aviation emission modes 6K00A3E / 5K60A3E.

• Compandor Noise Cancellation & Dual Squelch Control: Equipped with AM aviation band adjustable squelch (0–20 levels) and ANL automatic noise limiter, plus built-in dynamic audio amplifiers. It guarantees loud, intelligible voice output even in high-noise environments (up to 90dB) like runways and tarmacs.

• Full Airband & Weather Band Coverage: The receiver covers full aviation receive range 108.000 ~ 136.99166 MHz, plus dedicated weather band 161.650 ~ 163.275 MHz with 16K0G3E emission mode for weather alert monitoring.

• 200 Storable Memory Channels: Supports manual or PC software channel writing, storage and deletion of up to 200 memory channels; factory pre-programmed weather channels are locked and non-editable.

Standard ICAO Requirements vs. QYT KT-A16
