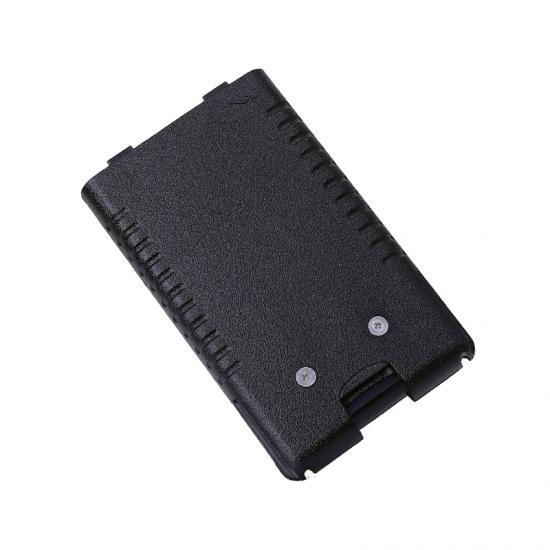

BP-227 LI-ION 7.4V battery capacity of 1700mAh for ICOM：
IC-F50 IC-F50V IC-F51 IC-F51V IC-F60 IC-F60V IC-F61 IC-F61V IC-F61M IC-V85 IC-E85 IC-M87 IC-M88 IC-F88 series radio.
|
General Specifications |
|
|
Original Model No. |
BP 227 |
|
Compatible Radio Models |
IC-F50 IC-F50V IC-F51 IC-F51V IC-F60 IC-F60V IC-F61 IC-F61V IC-F61M IC-V85 IC-E85 IC-M87 IC-M88 IC-F88 |
|
Place Of Original |
China |
|
Voltage/Type |
7.4V LI-ION |
|
Capacity |
1700mAh |
|
Dimensions (mm) |
91(W)*59(D)*20(H) |
|
Compatible Charger Models |
BJ152 |
|
Mechanical |
|
|
Cells used |
Chinese cell or Japanese cell |
|
Plastic material |
PC+ABS+fireproofing material |
|
Assembly construction |
Housings bonded by ultrasonic |
|
Charger&radio contacts |
Gold-plate |
|
Environmental |
|
|
Charging temperature |
+0°C to +45°C |
|
Discharging temperature |
-20°C to +60°C |
|
Storage temperature |
+25°C + –5°C |
|
Storage position |
non-critical |
|
Package |
|
|
Inner packing |
Polyethylene tape packaged batteries in white separate boxes |
|
Outer packing |
Put white separate boxes into 34*34*34cm carton, 100PCS each carton |
