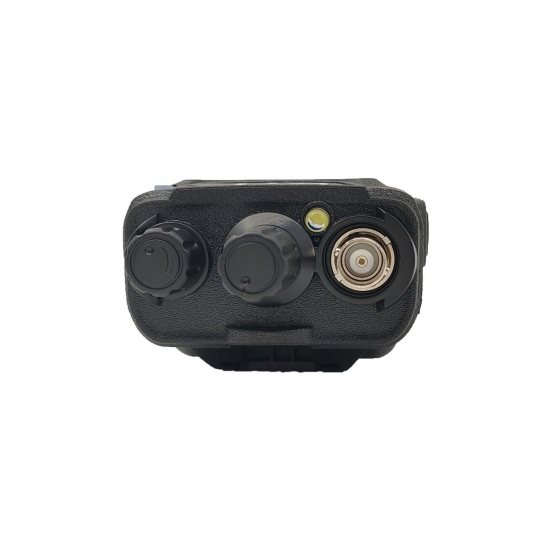

This CB-58 is our newly launched handheld CB radio, and it is also the only handheld walkie-talkie currently available on QYT.
Compatible with all handheld CB radios from many brand with a BNC connector, improve quality and range to CB radio reception. The antenna design is soft, flexible and durable, works on all channel within CB radio frequency range of 26MHz to 27 MHz.
With its compact size it can be easily installed into almost any mounting location in your vehicle.
SPECIFICATIONS:
| GENERAL | |
| Modulation Mode | AM/FM |
| Frequency Range | 26.965-27.405Mz |
| Frequency Tolerance | 5.0ppm |
| Input Voltage | 12V |
| Dimensions(in mm) | 165(W)x67(D)×44(H) |
| Weight | Appro×444.5g |
| Frequency Control | PLL Synthesizer |
| Operating Temperature Range | -20℃to55℃ |
| Transmit | 2A MAX |
| Current Drain Receive | Squelched 0.3A |
| VOL Max | 0.8A |
| Antenna Connector | BNC |
| TRANSMITTER | |
| Power output | 4 Watts FM/AM |
| Transmission interference | inferior to 4nW(-54d Bm) |
| Frequency Response | 300-3000Hz |
| Modulated signal distortion | inferior to 5% |
| output impedance | 50 ohms |
| RECEIVER | |
| Sensitivity | Less than 1uV for 10dB(S+N)/N |
| Image Rejection | 70dB |
| Adjacent Channel Rejection | 60dB |
| IF Frequencies | 1st 10.695MHz |
| 2nd 455KHz | |
| Automatic Gain Control(AGC) | Less than 10dB change in audio |
| output for inputs from 10 to 50000uV | |
| Squelch | less than 1uV |
| Audio Output Power | 3 watts into 8 ohms |
| Frequency Response | 300-3000Hz |
