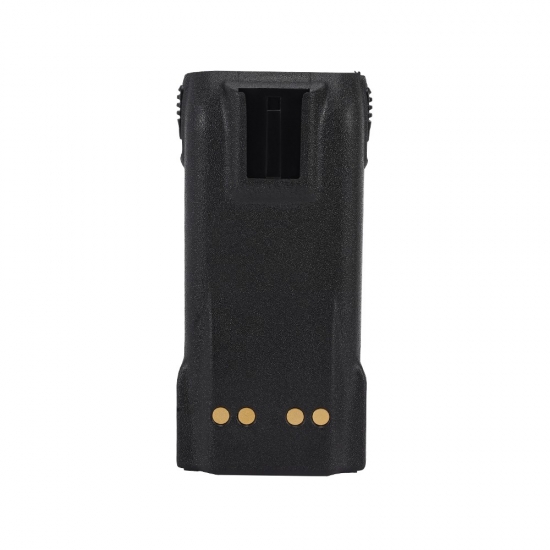

NTN7335 rechargeable battery pack for motorola:
XTS2500/1500 PR1500 series radio.
Similar product recommendation:

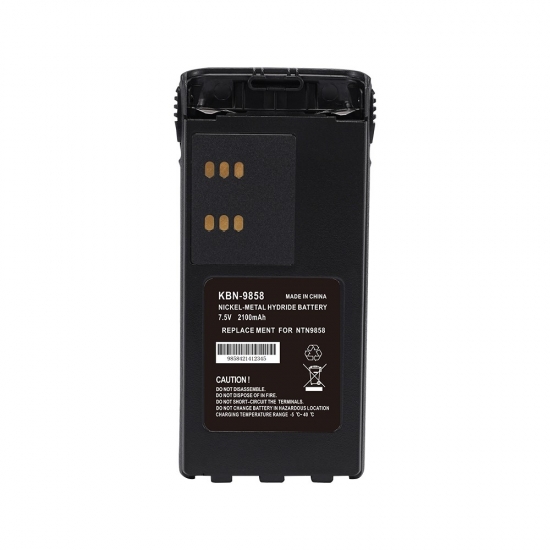

NTN7335 NTN9815 NNTN9858 PMNN4495A NTN9853.
|
General Specifications |
|
|
Original Model No. |
NTN7335 |
|
Compatible Radio Models |
XTS2500/1500 PR1500 |
|
Place Of Original |
China |
|
Voltage/Type |
7.4V Li-Ion7.2V Ni-MH |
|
Capacity |
1800mAh/2200mAh/2500mAh/4000mAh/2600mAh/3500mAh/3400mAh |
|
Dimensions (mm) |
122(W)*54(D)*18(H) |
|
Compatible Charger Models |
WPLN4114AR |
|
Mechanical |
|
|
Cells used |
Chinese cell or Japanese cell |
|
Plastic material |
PC+ABS+fireproofing material |
|
Assembly construction |
Housings bonded by ultrasonic |
|
Charger&radio contacts |
Gold-plate |
|
Environmental |
|
|
Charging temperature |
+0°C to +45°C |
|
Discharging temperature |
-20°C to +60°C |
|
Storage temperature |
+25°C + –5°C |
|
Storage position |
non-critical |
|
Package |
|
|
Inner packing |
Polyethylene tape packaged batteries in white separate boxes |
|
Outer packing |
Put white separate boxes into 34*34*34cm carton, 100PCS each carton |
