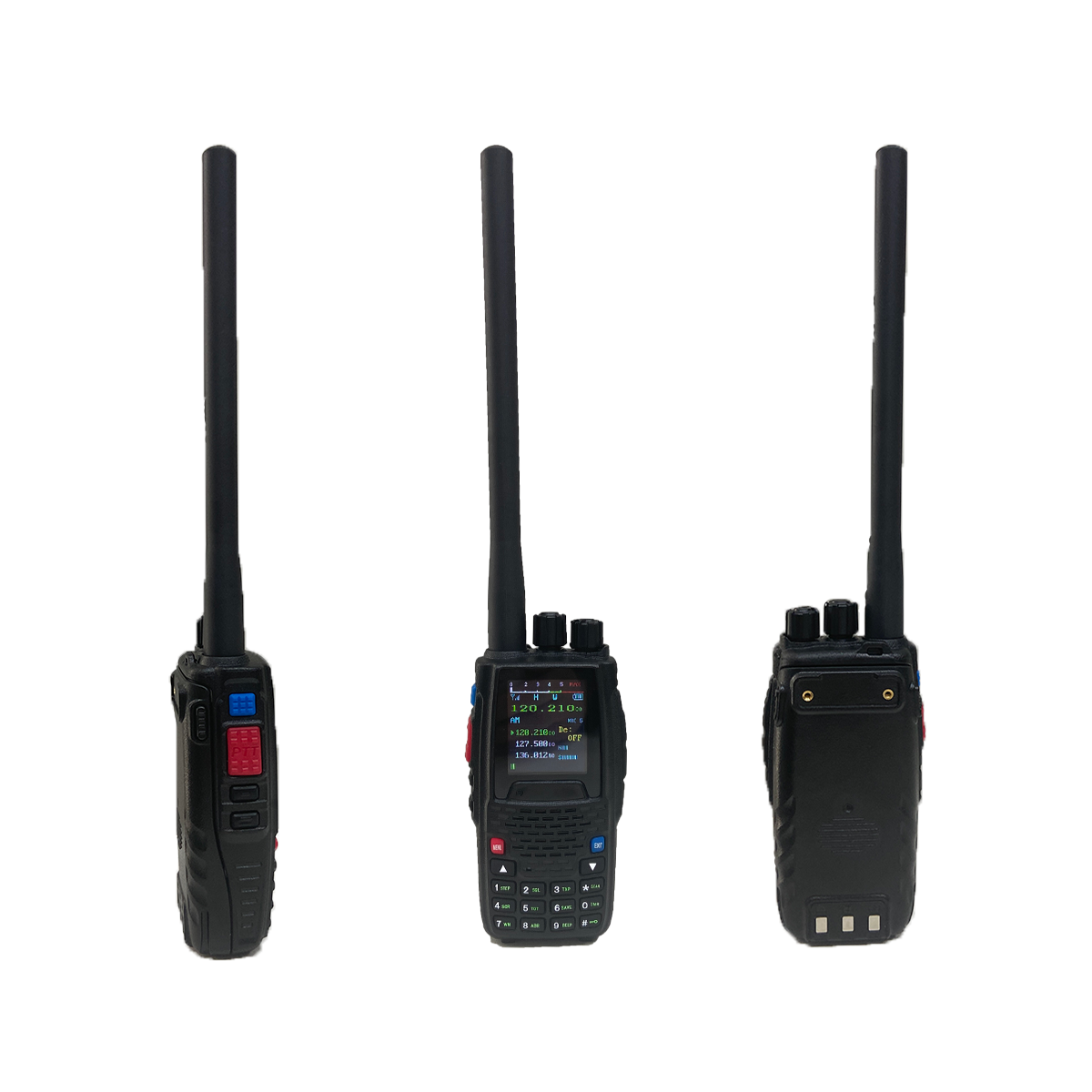

You can use it in combination with our KT-A16 aviation band two-way radio.

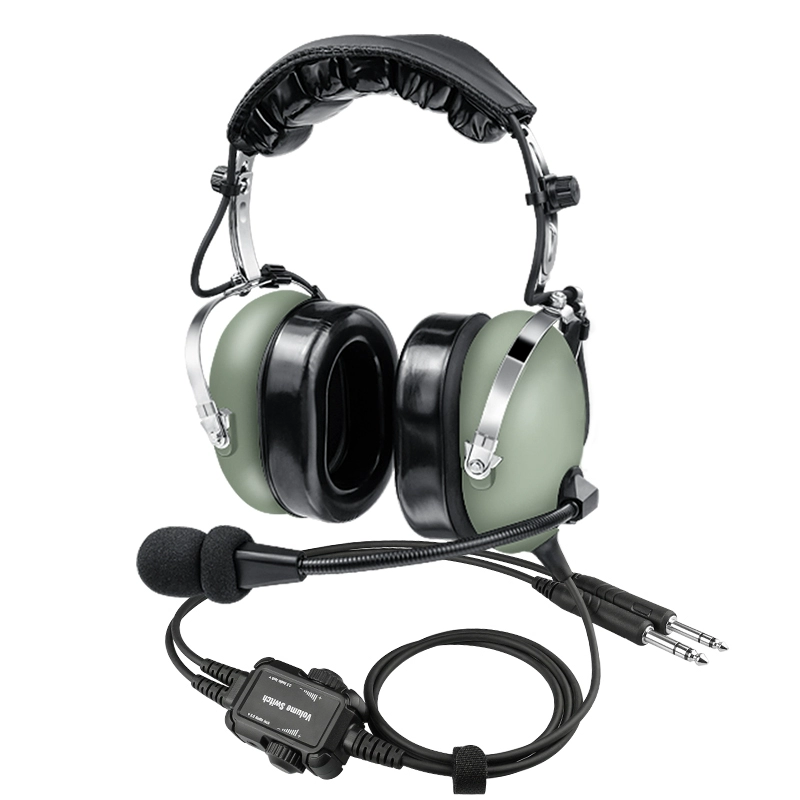

Comfortable Shock-Absorbing Head Pad
Detachable design for easy replacement and cleaning.
Built-in memory foam provides a comfortable wearing experience.
Durable ABS Ear Shells
One-piece injection-molded ABS ear shells offer high wear and pressure resistance, ensuring longer service life.
Full Silicone Ear Cushions
Full silicone ear cushions help relieve ear pressure, delivering a more comfortable wearing experience.
Adjustable Headband
The headband length can be adjusted as needed.
Humanized design with metal construction, resistant to pressure and high temperatures—suitable for more demanding environments.
Dual-Directional Noise-Canceling Microphone
Flexible and clear long boom mic for efficient communication.
Microphone capsule is detachable and replaceable.
| Parameter | Specification |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -25°C to 75°C |
| Microphone Type | Dual-directional noise-canceling microphone |
| Operating Voltage | 8–32V (depends on aircraft or device voltage) |
| Frequency Response | 100 – 5000 Hz |
| Microphone Sensitivity | -34 dB ± 4 dB (@1 kHz, 150Ω, 10V) |
| Speaker Diameter | 50 mm |
| Speaker Impedance | 165Ω (single speaker / 330Ω in parallel) |
| Speaker Rated Power | 100 mW |
| Speaker Sensitivity | 105 ± 3 dB at 1 kHz / IEC318, 575 mV |
| Noise Reduction Level | Max -24 dB |
| Connector | PJ-055 / PJ-068 |
