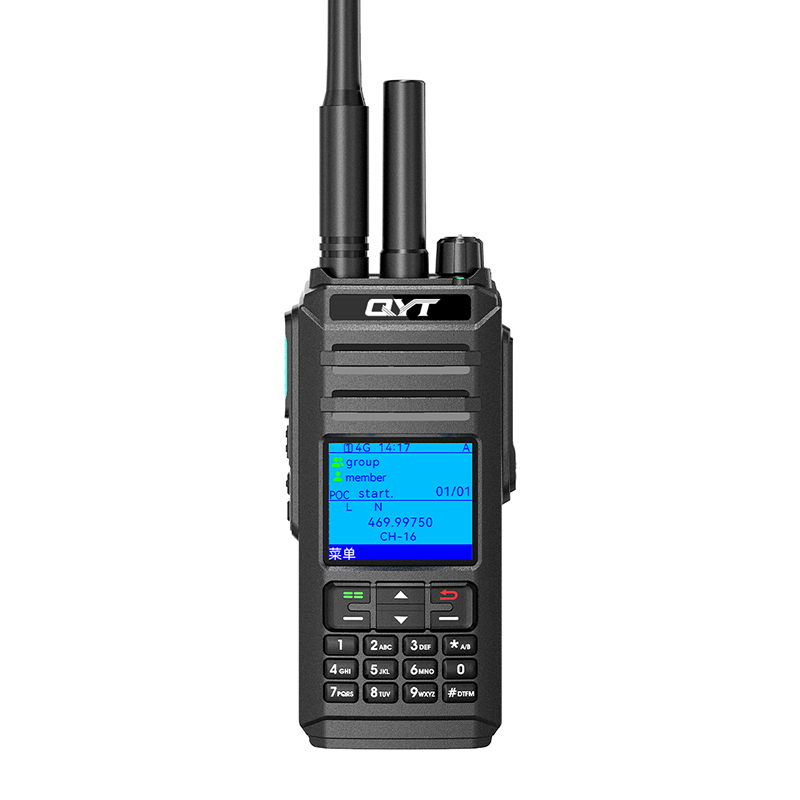

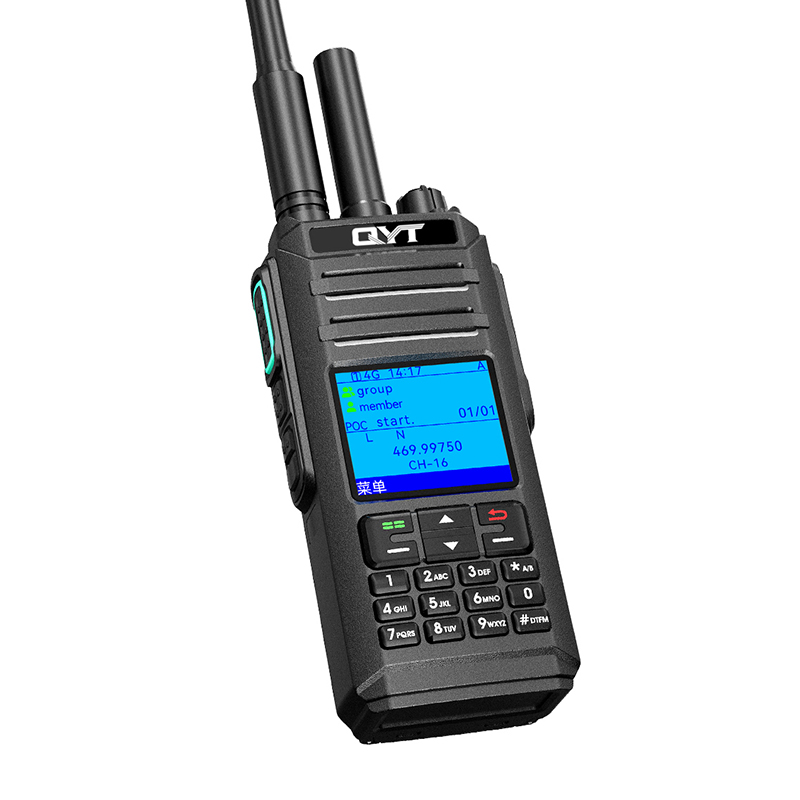

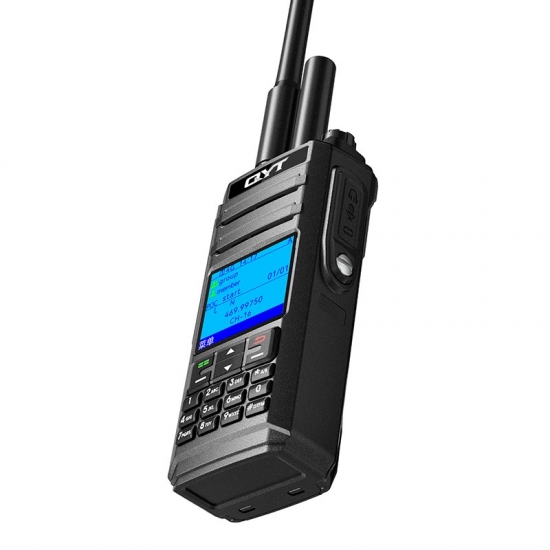

The NHAD-309 is a powerful 10W handheld radio that supports both 4G PoC (Push-to-Talk over Cellular) and UHF DMR communication. It features a dual-mode UHF channel system, allowing manual switching between digital and analog modes. With nationwide coverage via cellular networks and compatibility with traditional UHF radios, the NHAD-309 is ideal for teams requiring versatile, long-distance communication across mixed platforms.
| Item | Value |
| Size | 140*65*40mm (not include antenna) |
| Frequency | 400–470MHz |
| Channels | 1024 (64 zones) |
| POC Mode | Bands: LTE-FDD B1/B3/B5/B8, LTE-TDD B34/B38/B39/B40/B41 (according to different countries) |
| Channel Space | 12.5kHz |
| Voltage | 7.4V |
| Battery Capacity | 2500 mAh Li-ion battery |
| Work Temperature | -30℃ ~ +60℃ |
| Antenna Impedance | 50 Ω |
| Audio Output | <1000mW @16 Ω |
| Transferring | |
| Item | Value |
| Output | 10W |
| Frequency Stability | +/- 1.0ppm |
| Adjacent Channel Power | ≤ -60dB |
| Noise | -40dB @12.5kHz |
| 4FSK DMR Mode | 12.5kHz (data only) 7K60FXD |
| 12.5kHz (data+voice) 7K60FXE | |
| Max Frequency Offset | 2.5kHz @12.5kHz |
| Nonactive Slot Power | -57dBm |
| Digital Protocol | ETSI TS 102 361 |
| Vocoder | AMBE++ |
| Audio Response | +1dB ~ -3dB |
| Spurious Radiation | Antenna: 9kHz–1GHz ≤ -36dBm |
| 1GHz–12.75GHz ≤ -30dBm | |
| Error Rate | ≤5% |
| Receiving | |
| Item | Value |
| Sensitivity | 0.25μV (BER≤5%) |
| Spurious Response | ≥70dB |
| Adjacent Channel Selection | ≤60dB @12.5kHz |
| Rated Audio Power | 1W |
| Audio Response | +1dB ~ -3dB |
| Audio Distortion | ≤5% |
| Intermodulation | ≤60dB |
