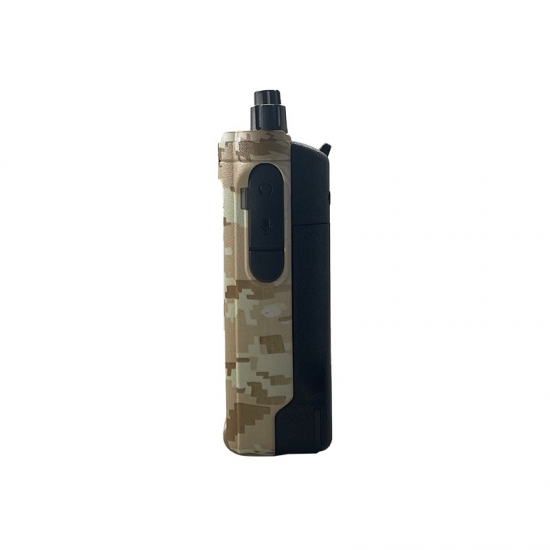

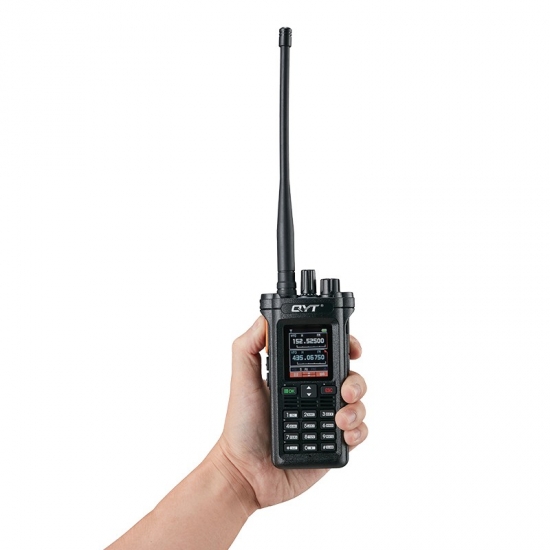

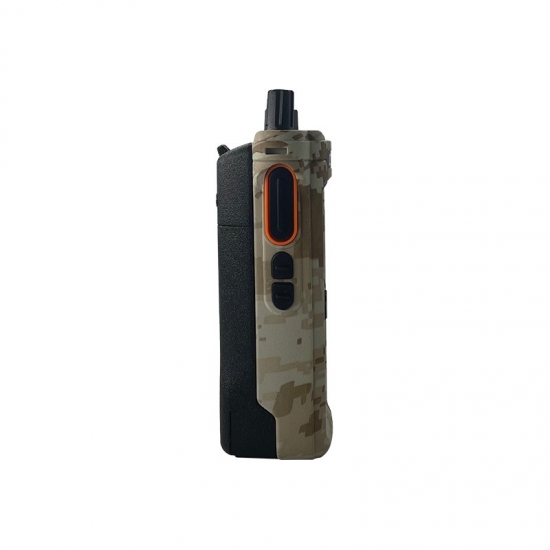

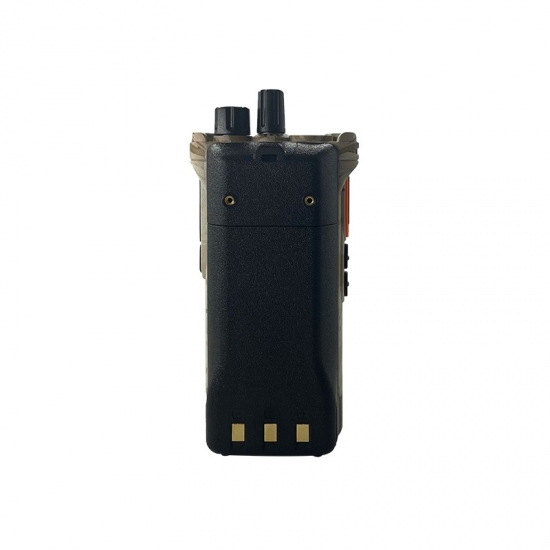

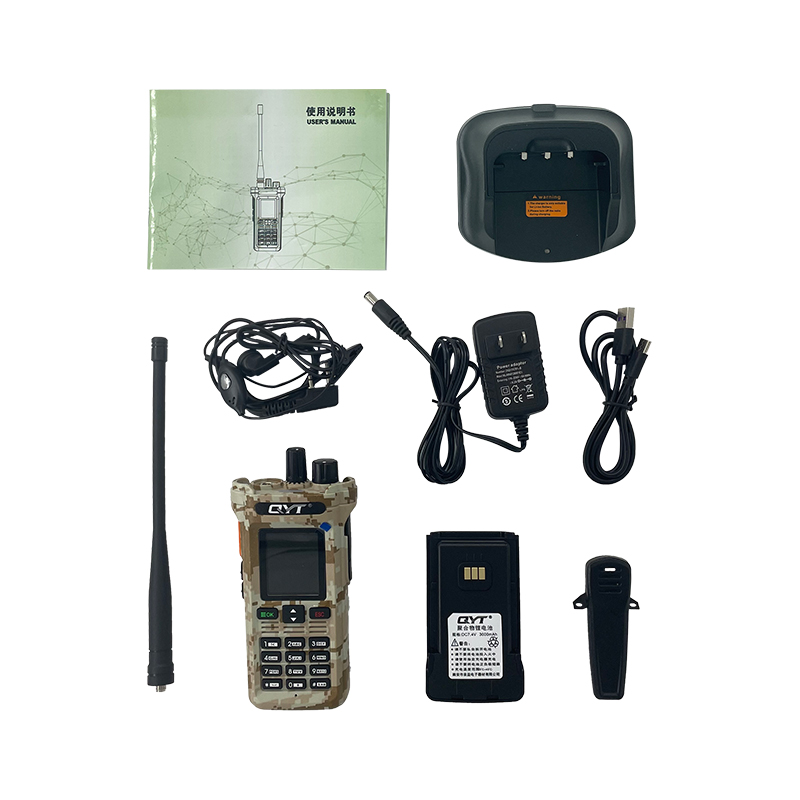

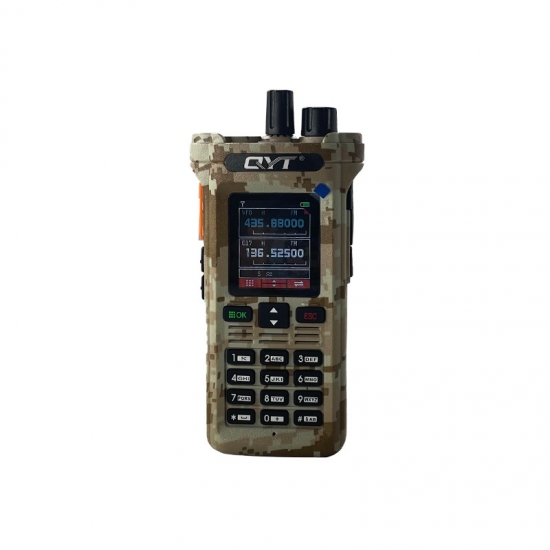

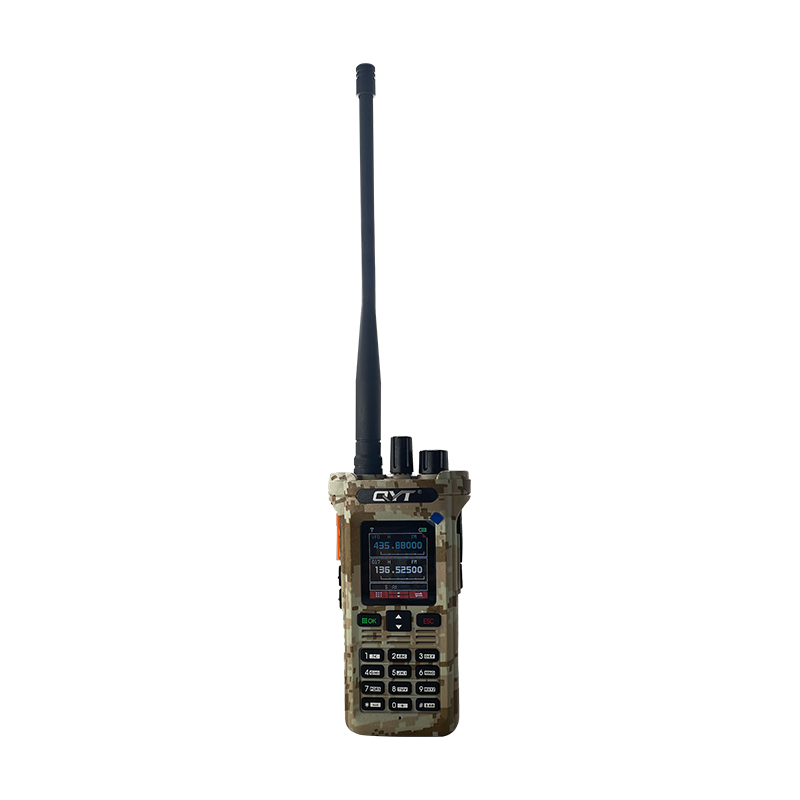

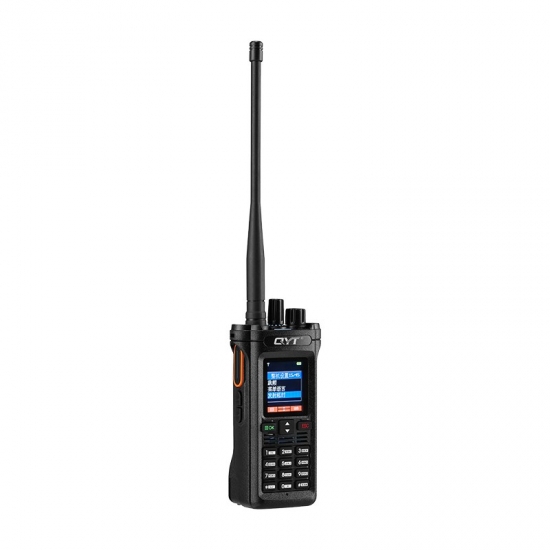

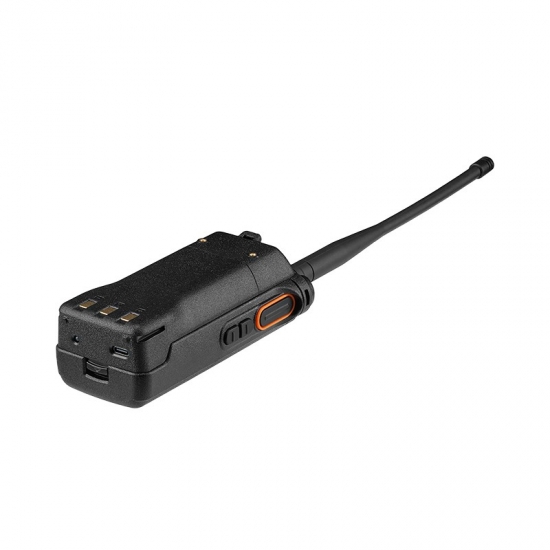

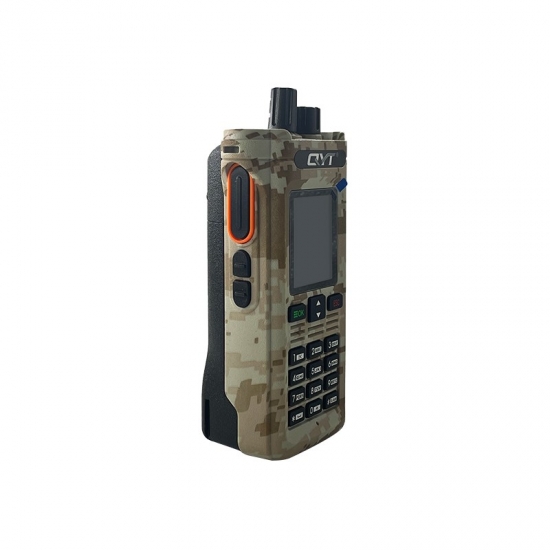

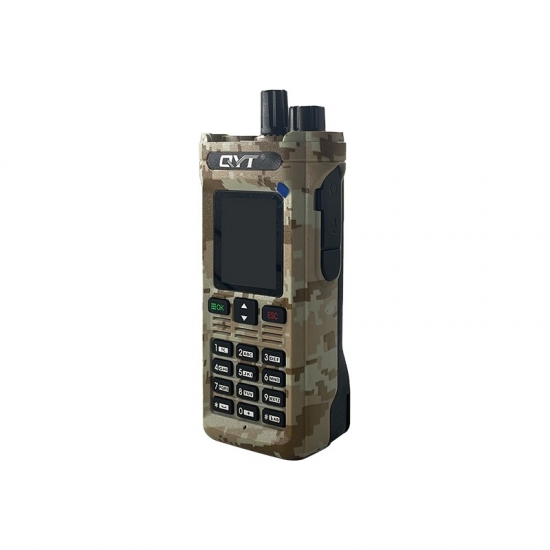

The KT-10R features 10W high power, full-band frequency coverage, and airband reception for versatile communication. It supports one-key frequency synchronization, Type-C charging, and a high-capacity battery for extended use. With 199 channels, strong anti-interference, and clear audio output, it’s a reliable choice for professionals and outdoor enthusiasts.
| The Whole Part | |
| Parameter | Specification |
| Frequency Range | 136-260MHz / 350-480MHz |
| Rated Voltage | DC 7.4V (Battery) |
| Memory Channel | 199 channels |
| Antenna Configuration | Induction antenna |
| Antenna Impedance | 50Ω |
| The Way It Works | Same frequency or different frequency singleton |
| Grounding Mode | Negative |
| The Receiving Part | |
| Parameter | Specification |
| Sensitivity | <0.16μV (25dB SINAD) |
| Static Sensitivity | 0.2μV |
| Intermodulation Anti-Jamming | 50dB |
| Audio Power | ≥300mW |
| Receive Current | ≤100mA |
| Wait in Silence | 20mA |
| The Transmission Part | |
| Parameter | Specification |
| Output Power | 5-10W |
| Modulation Method | FM |
| Maximum Frequency Offset | ≤ ±5KHz |
| Residual Wave Radiation | ≤ -60dB |
| Pre-Weighting Feature | 60dB per octave |
| Send the Current | ≤1200mA |
