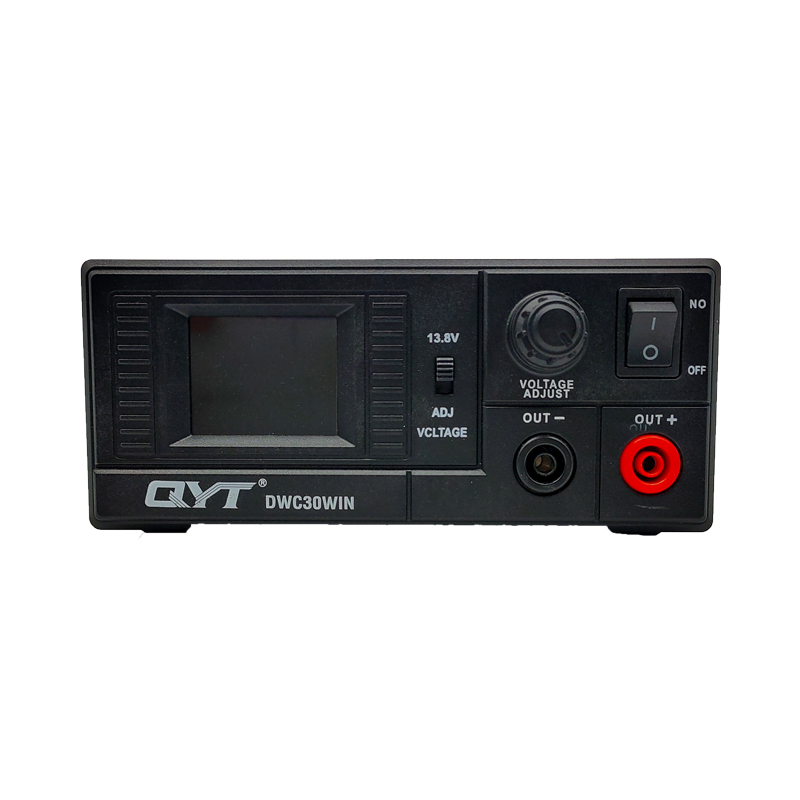

QYT 30A DWC30WIN switching power supply suit for mobile radio

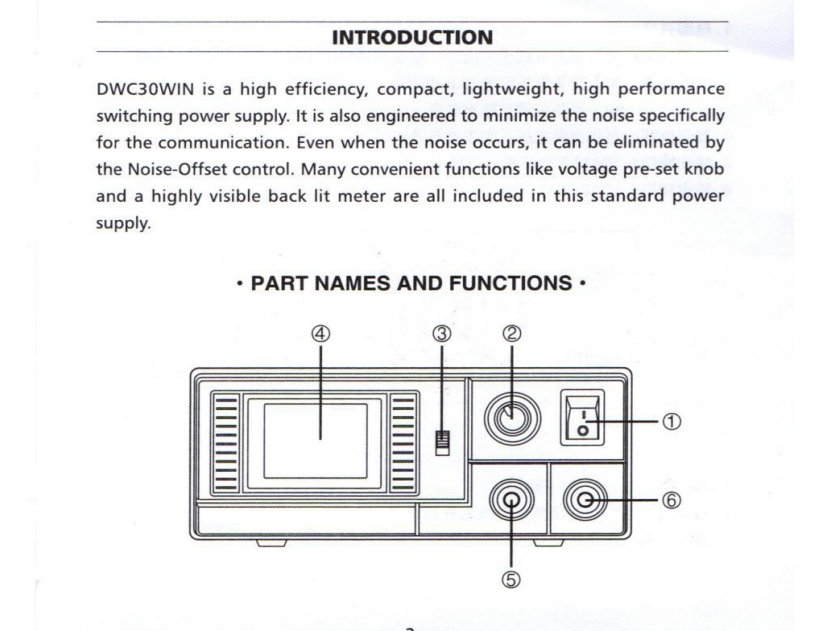

DWC30WIN is a high efficiency, compact, lightweight, high performance switching power supply. It is also engineered to minimize the noise specifically for the communication.Even when the noise occurs, it can be eliminated by the Noise-Offset control. Many convenient functions like voltage pre-set knob and a highly visible back lit meter are all included in this standard power supply.

  • Brand:

    QYT
  • Item NO.:

    DWC30WIN
  • MOQ:

    2
Products Description


The DWC30WIN is a highly efficient, compact, and lightweight switching power supply delivering outstanding performance. Designed to minimize noise specifically for communication purposes, it features a Noise-Offset control to eliminate any noise that may occur. This standard power supply also includes convenient features such as a voltage preset knob and a highly visible backlit meter.


1.Input voltage 220V AC

2.Output voltage 13.8DC adjusted voltage between 9.0 and 15.0 volts.Turn

clockwise to increase and counter clockwise to decrease the voltage.When

it is set at the center position it will supply 13.8 volts.

3.Output voltage regulation:less than 2%.

4.Protection Short-circuit,Automatic current limiting With in 30A.

5.Output current 30A (max),20A(continuous).

6.Ripple less than 80mVp-p at rated load.

7.fuse 5A.

8.Meter single volt/current meter,back-lit.

9.Dimensions:155 (W)x 70 (H)x 205 (D)mm (projections not included)

10.Weight approx.1.5kg






QYT Electronics Co., Ltd. (QYT) was one of the earliest professional two-way radio and accessories manufacturers in China, and now one of the top mobile radio providers as well. QYT is headquartered in Quanzhou, Fujian, China. We are mainly responsible for the company's related product hardware development, production, sales and engineering services. Our company also provides customized services as well as personalized, differentiated products (OEM/ODM).
